Handled Flip-Top Rigid Box with Clear Insert

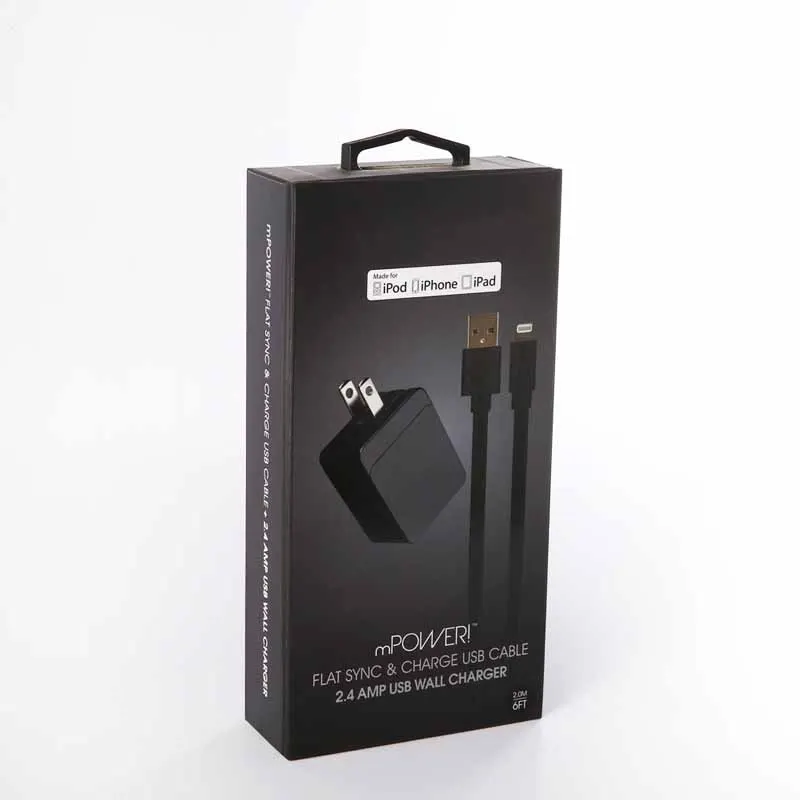

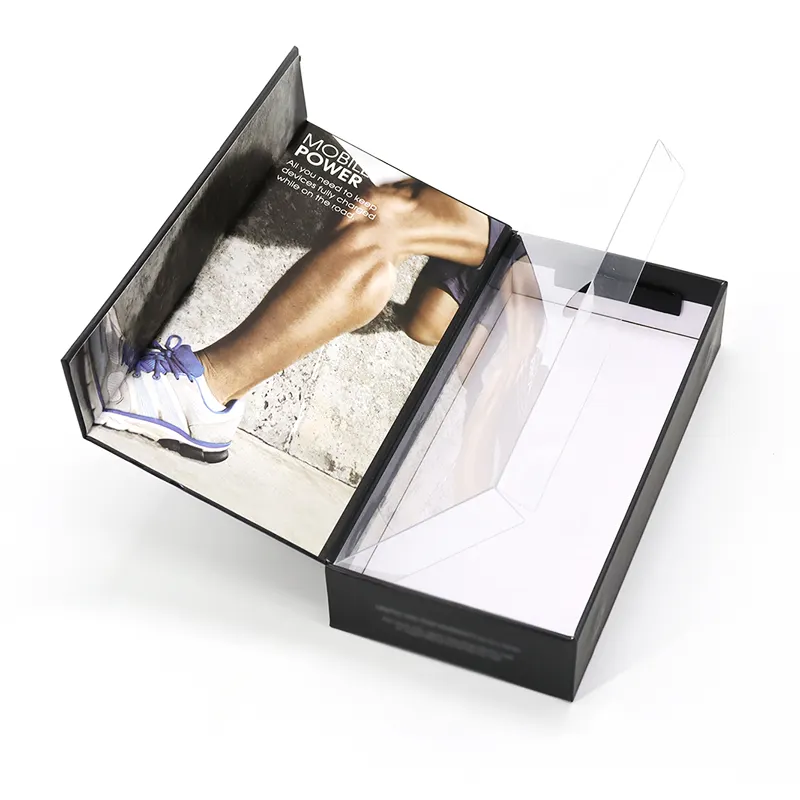

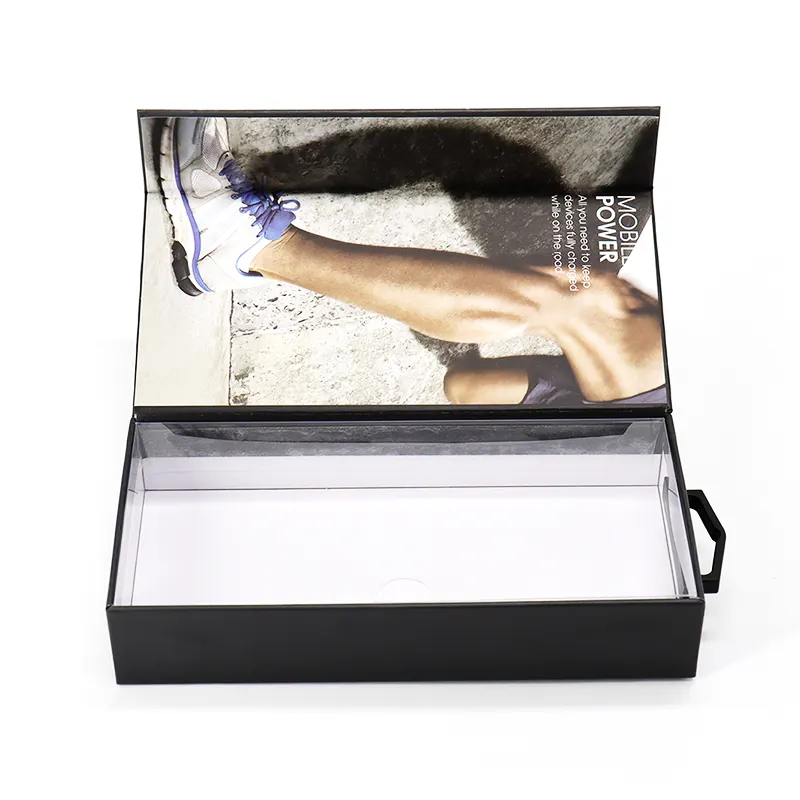

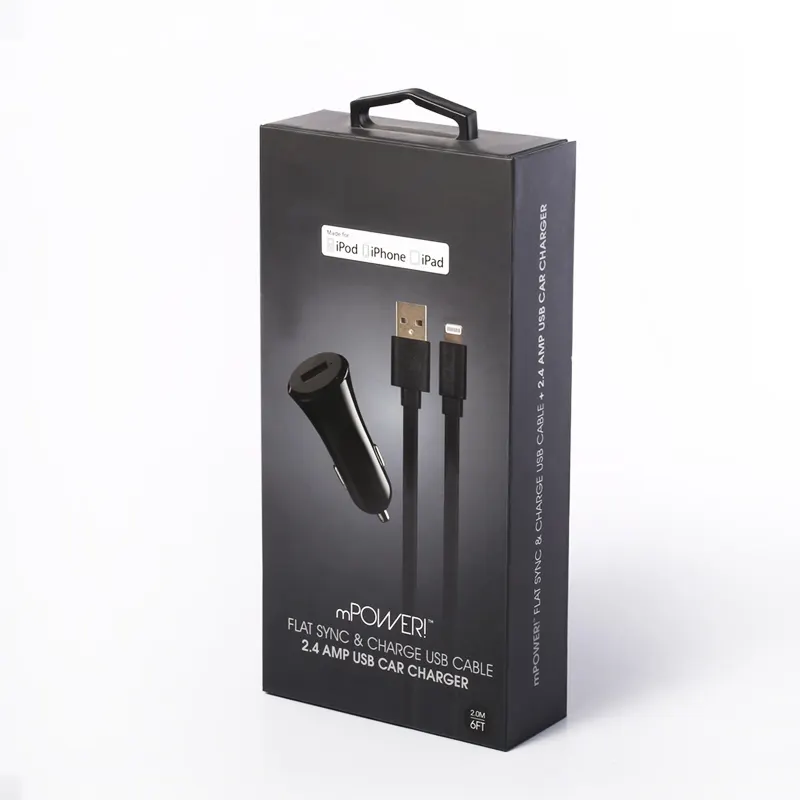

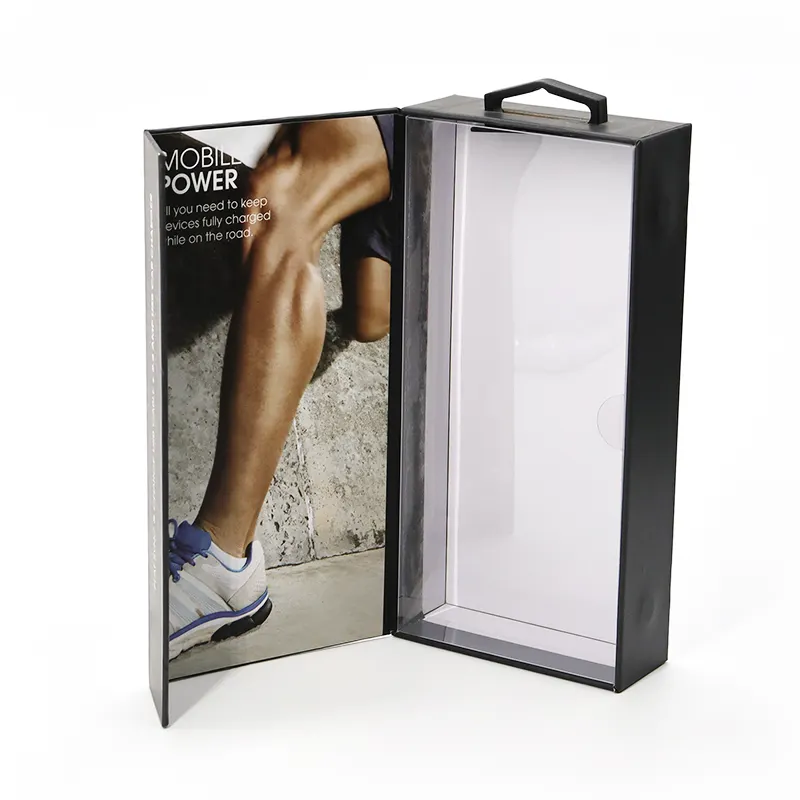

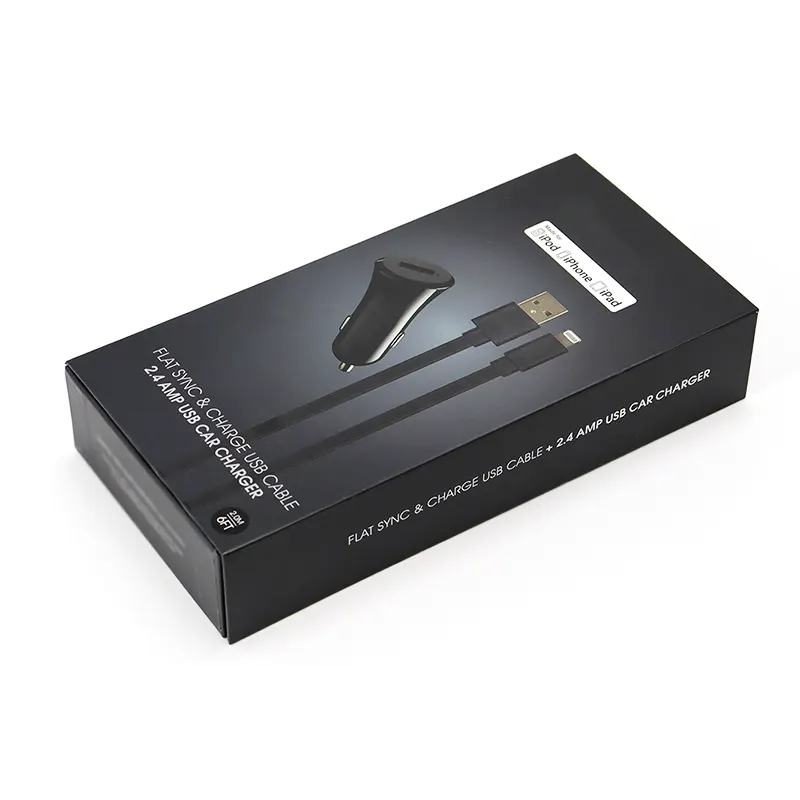

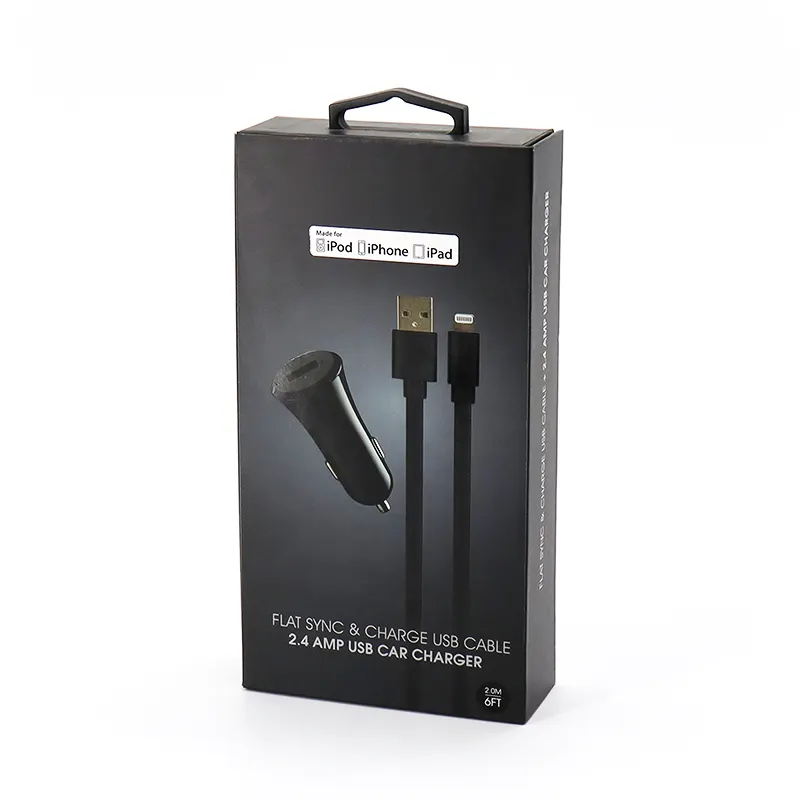

The closed views show a tall, black printed pack with a handle at the top. In the open views, the cover turns to the side and its inside face carries a large printed image. A clear formed insert sits above a light-colored base; the package artwork depicts charging accessories, but your product and insert still need their own specification.

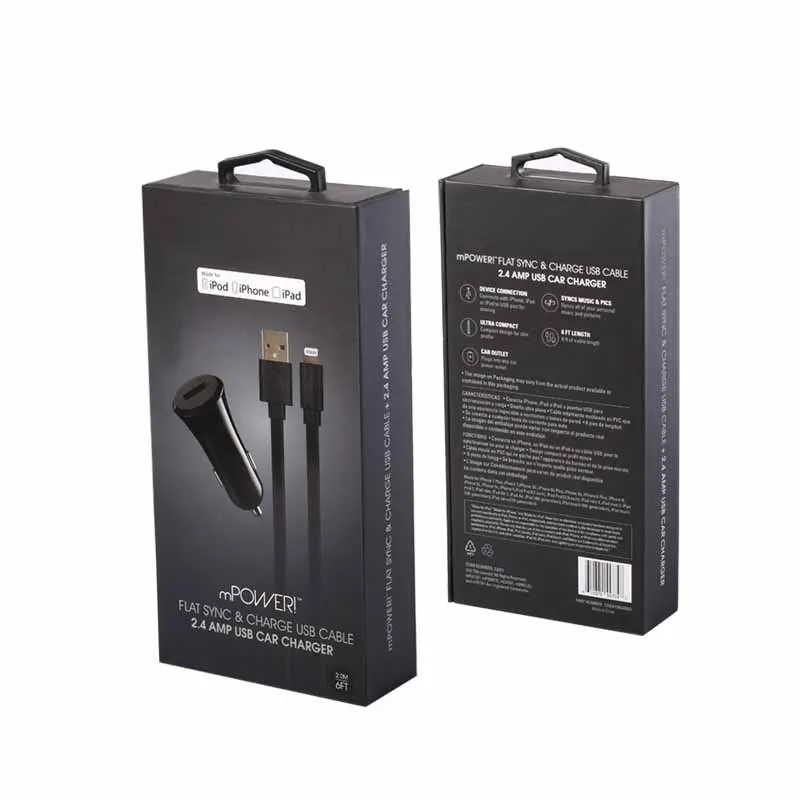

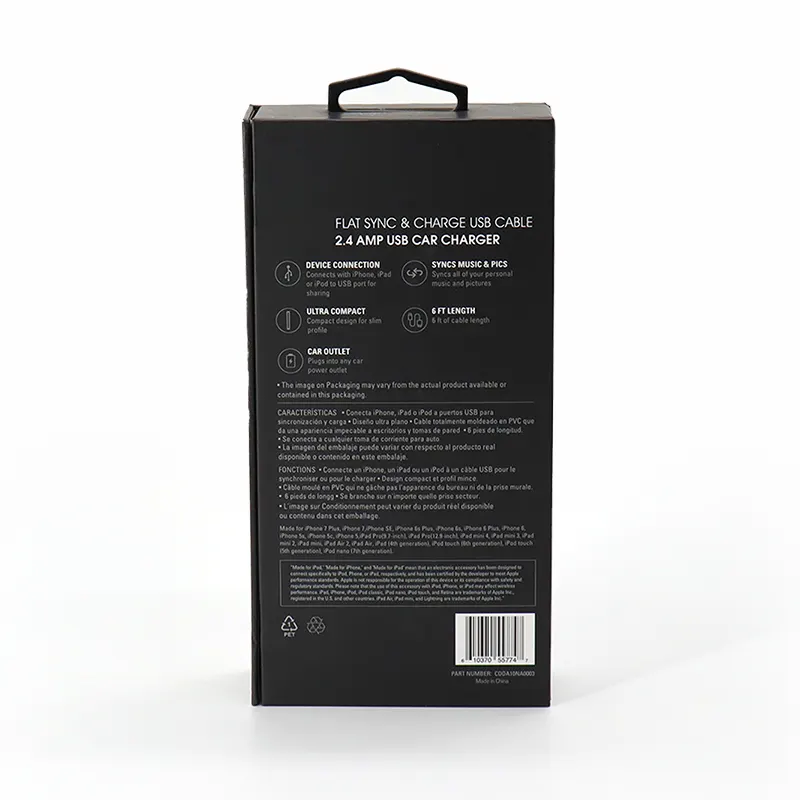

The front, back and open views are useful for checking where product information, graphics and a barcode might sit. They cannot establish whether magnets are used, how the handle is fixed or which material was selected. Those details must come from the sample and production record.

• Side-opening cover and top handle
• Printed exterior and inner lid
• Clear insert and light-colored cavity

Compare this handled layout with other openings in the flip and magnetic box category.

Choose this visual direction when the buyer needs to carry the closed pack and present the product after the side-opening cover is lifted. The photograph shows one way to separate the outer graphics from the inner product area; it does not prove that the same insert will fit a different item.

If your product has several parts, decide which one the buyer should see first, where the remaining pieces sit and how each piece is removed. If a simple top-opening carton would do the job, compare that option before committing to a hinged presentation structure.

• Carry position and opening direction
• Order in which the product and accessories appear
• Space for printed instructions and retail information

Choose the wrap and visible surface only after reviewing materials and finishes against the required appearance and handling.

Send the real product or its measured length, width, height and weight. Include every accessory that must share the cavity, the preferred opening direction and whether a handle is required. State where a barcode, legal copy and brand graphics need to appear on the closed and open faces.

A reference photo is a visual starting point, not a dieline. The insert depth, wall clearance, handle location, closure and artwork positions need to be established together so a sample can answer the right questions.

• Packed product and accessory measurements
• Opening, handle and insert requirements
• Artwork files, quantity and destination market

If the inside size is not settled, use the guide on how to measure a box and read a dieline before sending the brief.

Open and close the sample with the real contents installed. Check that the cover clears the product, the insert holds it in the intended orientation and fingers can remove it without tearing the presentation area. Lift the packed sample by its handle and inspect the attachment and any visible strain; no carrying strength is claimed from the photograph alone.

Before bulk approval, compare the closed and open artwork, handle position, insert shape and packing orientation with the approved sample. Record any closure method and material only after the factory confirms them, and keep the approved files together with the final product specification.

• Cover alignment and accessible product removal
• Handle attachment on the packed sample
• Artwork, insert and packing orientation against approval

Use the site's quality-control process to place these checks in the wider prepress and final-packing sequence.

The quote should identify the final structure, the product and insert dimensions, the required surface, the print files, the quantity and the destination. The sample should then establish the opening feel and presentation with the actual packed item, rather than relying on a color name or this archived photograph.

If the approval reveals a problem with the handle, hinge or insert, revise the construction and approve the revised sample before placing the bulk order. Keep the final artwork and packing instructions tied to this product page and the approved sample so everyone checks the same version.

• Confirmed structure and bill of materials
• Approved physical sample and artwork
• Final packing instructions and approved sample

Review how design, sampling and approval fit into the OEM/ODM process.
