CUSTOM CORRUGATED MAILER BOX MANUFACTURER
Hinged-Lid Mailer Box with Locking Side Flaps
The gallery opens with a black printed mailer whose lid is attached at the back and folds over the base. Side flaps are visible as it closes. Later gallery views show a separate white-and-red print layout and a flat cut component; they should be treated as archived visual references until the exact shared construction is confirmed.
Is this structure a suitable starting point?
Start with this reference when you need a low-profile mailer that opens from the top and can be packed in a defined sequence. Choose its board and inner support only after the packed item, shipping route and physical sample have been reviewed.
- Order type
- Custom made · not stocked
- Suggested use
- Hinged-lid mailer with folding side flaps
- Visual direction
- deep monochrome
- Standard MOQ
- 1,000 pcs per size and design
- Support
- OEM / ODM project review
For a useful first reply, include product size and weight, order quantity, destination market and target date.
CORRUGATED & MAILER BOXES
A hinged mailer with visible folding flaps

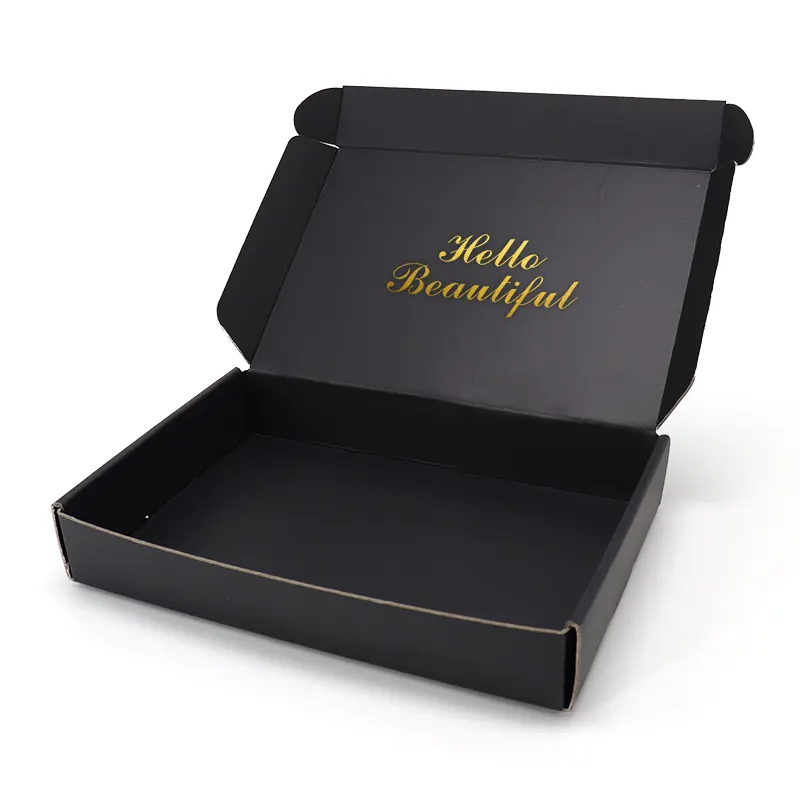

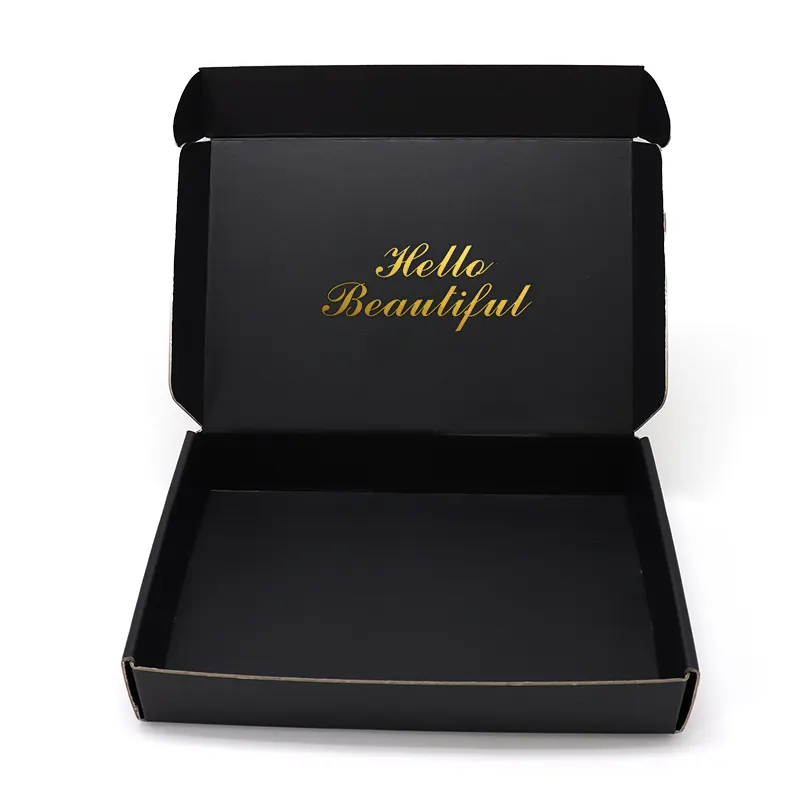

The black Baoxinglong sample shows one piece opening on a rear hinge. The front edge and side flaps fold toward the base; the closed view shows a broad printable top panel. These photographs explain the opening and print area more clearly than a generic corrugated-box description would.

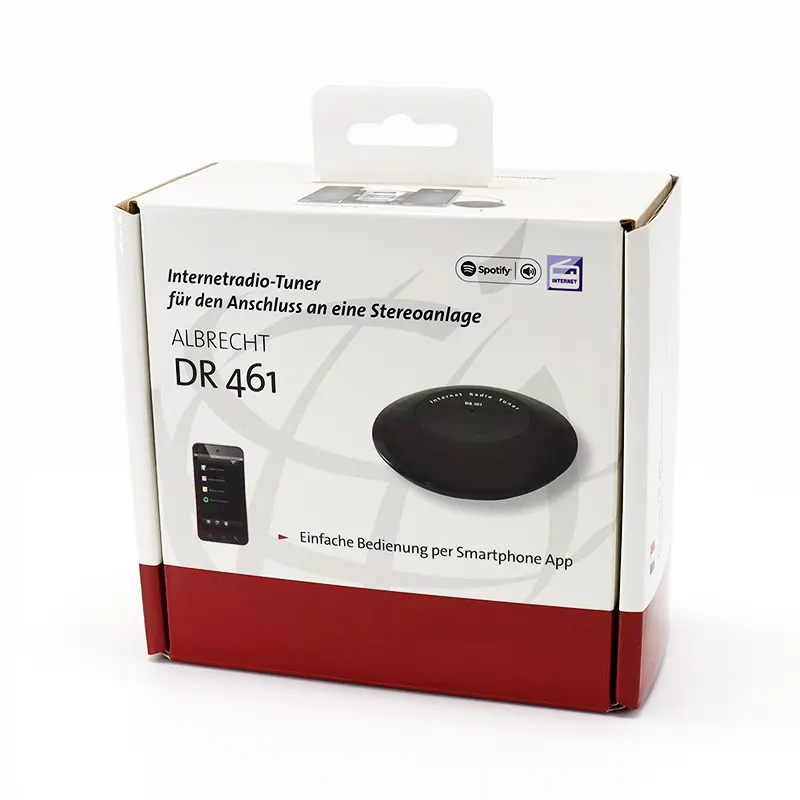

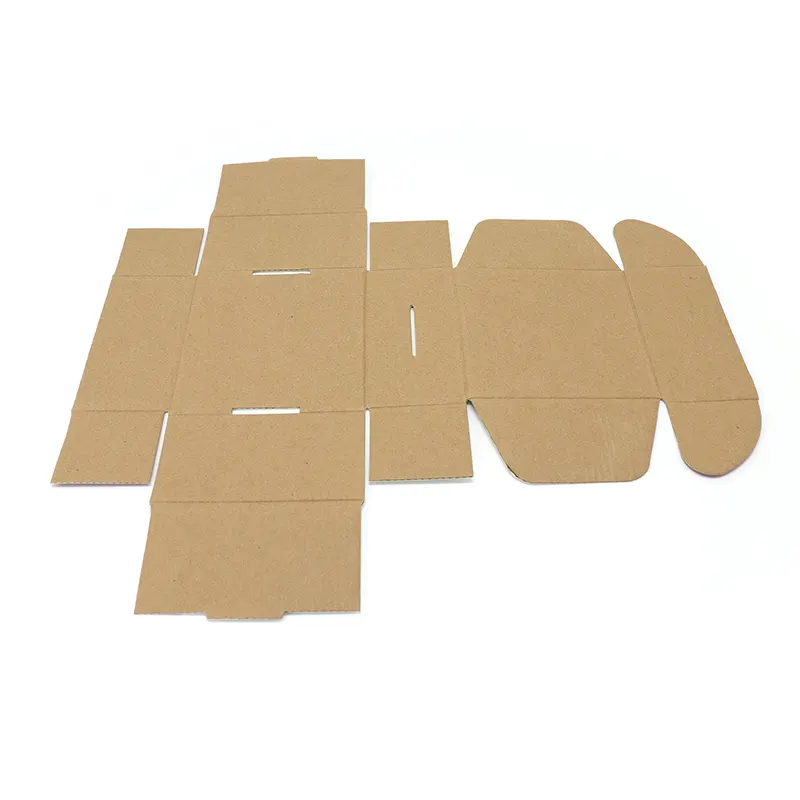

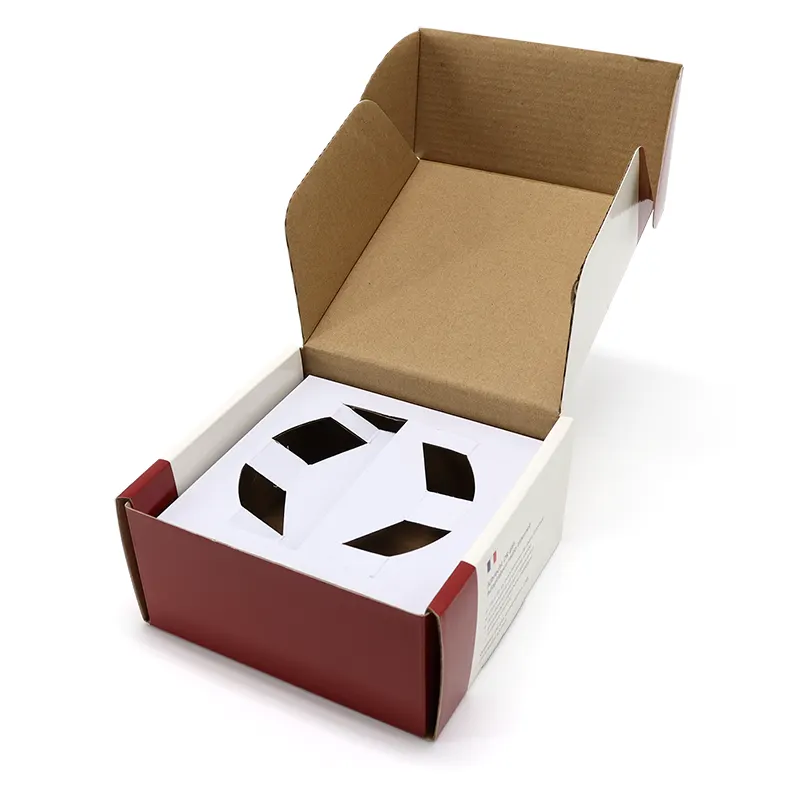

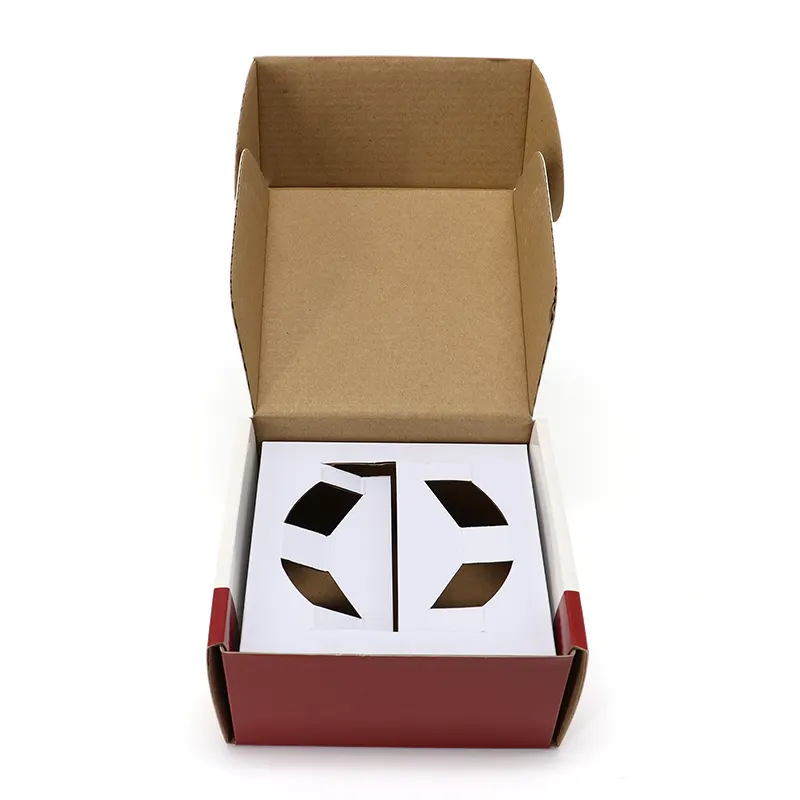

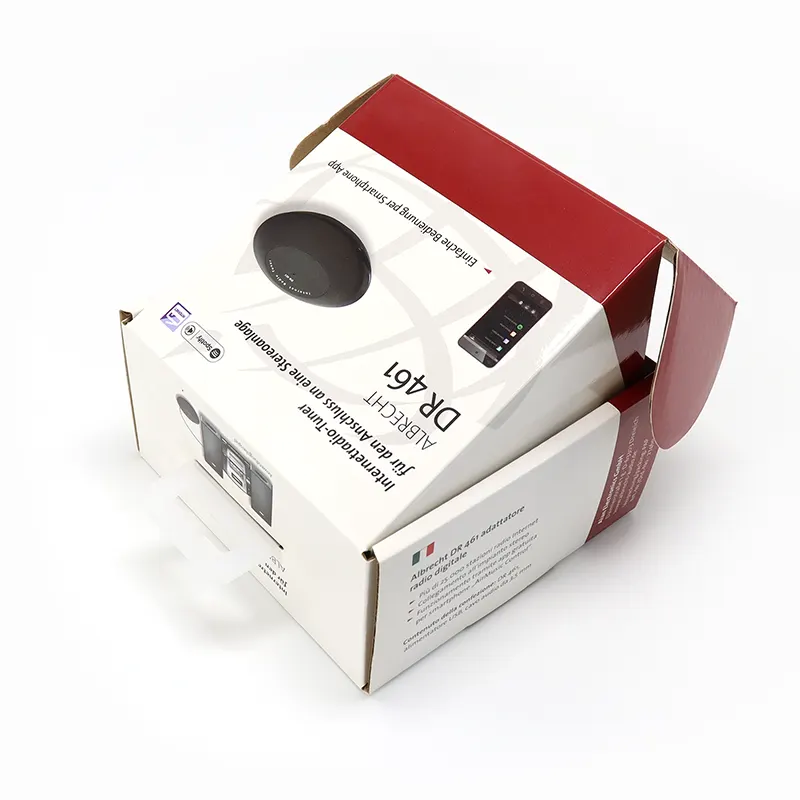

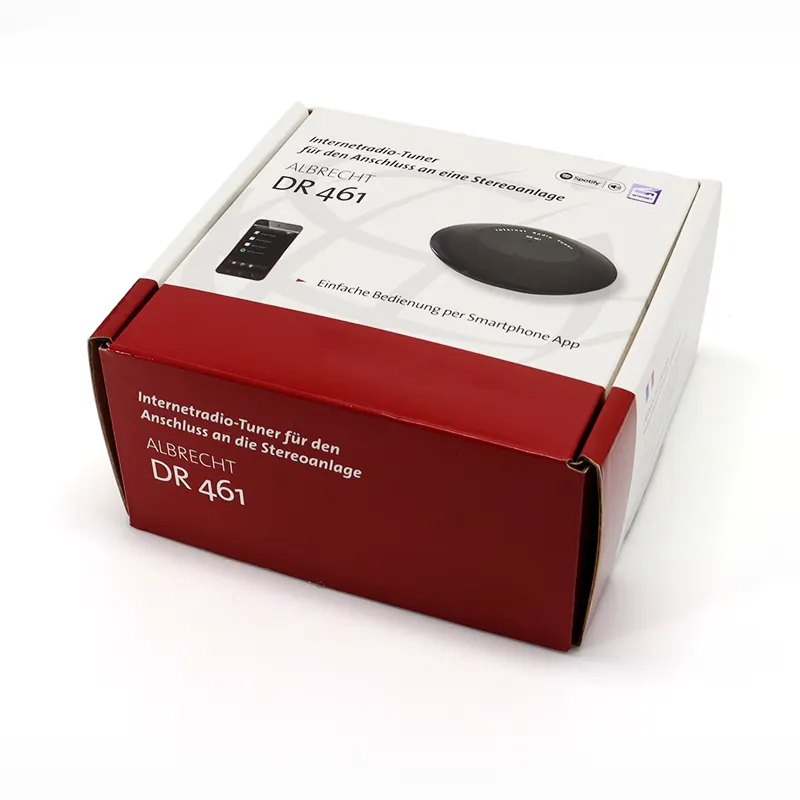

Other gallery photographs include a white-and-red printed example and a flat cut paper component. They do not establish that every photographed part has the same board grade, flute or insert. Confirm which sample is the approved structural starting point before drafting one final specification.
- Attached lid and broad printed top panel
- Side and front folding flaps
- Separate archived print and flat-component views
Compare this opening with other constructions in the corrugated and mailer box category.
CORRUGATED & MAILER BOXES
When this opening works for a buyer
A shallow hinged mailer can suit a project that needs a controlled first view when the lid is opened. The buyer must still decide whether the contents need a separate insert, paper protection or a different box depth. The photograph does not demonstrate shipping strength or product fit.
If the project has delicate edges or several parts, set the packing orientation before the outer size. Review how the side flaps close around the contents, where a shipping label will sit and whether printed information stays readable after sealing.
- Opening view and first product reveal
- Space for protection or an insert
- Closing sequence and external label area
Confirm the actual board and print route through materials and finishes after the product and distribution needs are known.
CORRUGATED & MAILER BOXES
Information needed before a mailer sample
Send the packed item's length, width, height and weight, plus the number of pieces and their intended orientation. Provide the destination and handling route, the planned inner support and any shipping-label or barcode requirement. A mailer cannot be specified from outer appearance alone.
Ask the factory to show how the blank folds into the approved structure and where each flap locks. Only a material record or measured sample can establish the board grade and flute; neither should be inferred from the pictures.
- Packed dimensions and product weight
- Inner support and closure sequence
- Board specification, artwork and distribution route
The measurement and dieline guide explains how to record internal size and mark the cut and crease areas.
CORRUGATED & MAILER BOXES
Inspect the assembled mailer before bulk production
Build the sample from its flat form and place the real product inside. Check whether the side flaps fold cleanly, the lid stays aligned, the product can be removed without catching and the printed panel remains legible when closed. If a support piece is used, check it together with the outer box.
A real shipping route may require additional protection or documented tests. Do not treat this gallery as proof of any drop, stacking or compression result. Before bulk approval, record the selected structure, board, print layout, label position and packing instructions against the approved sample.
- Flap fold and lid alignment
- Packed-item fit and removal
- Approved board, print and packing record
See the quality-control process for how sample and final packing checks fit into the wider workflow.
CORRUGATED & MAILER BOXES
Keep structure and artwork tied to one approved sample
The gallery contains more than one printed appearance. When requesting this box, identify the photograph closest to your intended box and ask the factory to confirm which blank, insert and board belong to it. This is more reliable than assuming every photographed version is structurally interchangeable.
Once the structure is approved, fix the artwork and final packing sequence before production. If product dimensions or protection requirements change, revisit the blank and the sample rather than updating print alone.
- Selected photo and matching structural drawing
- Approved physical sample and artwork
- Revision control if packed contents change
Use the OEM/ODM process to coordinate the drawing, sample and final production approval.
COMPARE NEARBY REFERENCES
More Corrugated & Mailer Boxes in the same structure family
Compare several references before choosing the closest visual and opening direction for development.
PRODUCT FAQ
Buyer questions about this corrugated mailer box
These answers separate verified working conditions from project details that still need to be confirmed.
What flute is used in this mailer box?+
The photographs do not establish a flute grade. Confirm the board and flute with the factory after sharing the packed product weight and shipping route.
Do all photos show one approved construction?+
The gallery includes a black printed mailer, a white-and-red printed example and a flat cut component. Confirm which photos and drawing belong to the construction selected for your project.
What should I test on the mailer sample?+
Assemble it with the actual product and check flap folding, lid alignment, item fit, removal access, print placement and any required inner support. Ask for separate evidence if transport testing is needed.
What do you need for a quote on this mailer box?+
Send this product page link, packed dimensions and weight, quantity, destination, preferred print layout, inner support requirements and shipping route.
